BV Copper Core PVC Insulated Building Wire 450/750V – House & Building Wiring Cable
Reliable BV copper core PVC insulated wire for household and building electrical wiring.
Rated at 450/750V, featuring high conductivity, flame retardancy, and long service life.
Complies with IEC 60227 / GB/T 5023 / BS 6004 standards.
🔹 Product Overview

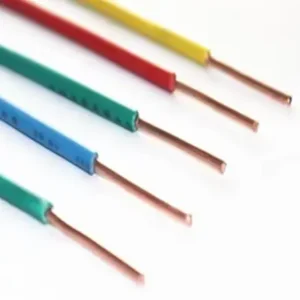

The BV Building Wire is a single-core, solid copper conductor wire insulated with high-grade PVC material, ideal for fixed electrical installations in homes, offices, and commercial buildings.
Designed for durability, safety, and stable electrical performance under 450/750V voltage systems.
🔹 Key Features
High Conductivity Copper Core — ensures low resistance and stable current flow
PVC Insulation — offers mechanical strength, abrasion resistance, and electrical safety
Rated Voltage: 450/750V — suitable for most residential and commercial circuits
Temperature Range: –15°C to +70°C
Flame Retardant: IEC 60332-1 compliant
Color Options: Red, Blue, Yellow, Green/Yellow, Black, White, Grey
Length Options: 100 m / 305 m / 500 m per roll (customized available)

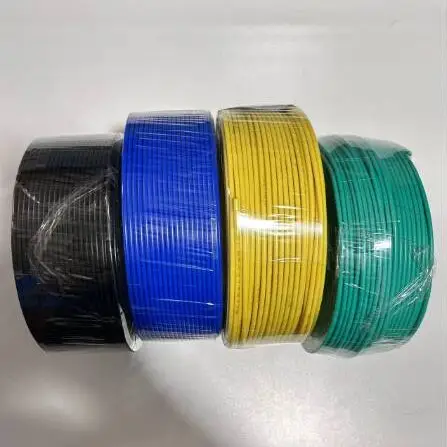

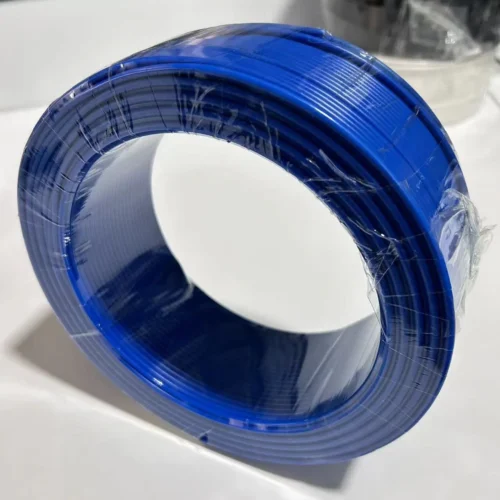

Packaging: Coils, Plastic Spools, or Wooden Drums
🔹 Applications
Indoor lighting circuits and socket wiring
Electrical distribution boards and switch panels
Residential and commercial building installations
Industrial control rooms and fixed wiring systems
| Nominal Cross Section (mm²) | Conductor Diameter (mm) | Max. Resistance (Ω/km at 20°C) | Approx. Outer Diameter (mm) |
|---|---|---|---|
| 1.0 | 1.13 | 18.1 | 2.6 |
| 1.5 | 1.38 | 12.1 | 2.8 |
| 2.5 | 1.78 | 7.41 | 3.3 |
| 4.0 | 2.25 | 4.61 | 3.9 |
| 6.0 | 2.76 | 3.08 | 4.5 |
| 10 | 3.57 | 1.83 | 5.8 |
| 16 | 4.51 | 1.15 | 7.2 |
| Armouring Type | Non-Armoured |
|---|---|
| Conductor Material | |
| Conductor Structure | Solid Conductor |
| Core Count | 1 Core |
| Fire Performance | Flame Retardant |
| Installation Type | Indoor Installation Cable |
| Insulation Material | PVC |
| Package Type | Coil / Roll, Wooden Pallet |
| Sheath Color | Blue, Green, Yellow |
| Standards / Certifications | GB / CCC Chinese Standard, IEC Standard |
| Temperature Rating | 70℃ |
| Voltage Rating | 450/750V |
