6.0mm² Twin & Earth PVC Insulated Flexible Copper Cable – Twisted Pair Building Wire

This **6.0mm² flexible twin-core PVC insulated copper cable** is designed for safe, reliable, and cost-effective electrical installations in residential, commercial, and light industrial environments. Featuring two stranded copper conductors twisted together and individually insulated with durable PVC sheathing in contrasting colors (commonly red/black or red/blue), it enables quick polarity identification and simplifies on-site wiring—making it a preferred choice for electricians and contractors across Africa.

Unlike flat twin cables, this twisted-pair configuration reduces electromagnetic interference between conductors and improves mechanical stability during installation.

Key Specifications

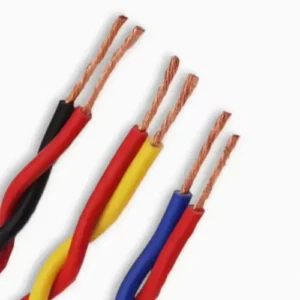

• Conductor: Flexible stranded electrolytic copper (Class 5 per IEC 60228)
• Cross-Sectional Area: 6.0 mm² (approx. 10 AWG)
• Insulation: Flame-retardant PVC (Polyvinyl Chloride), 70°C rated
• Voltage Rating: 300/500V AC

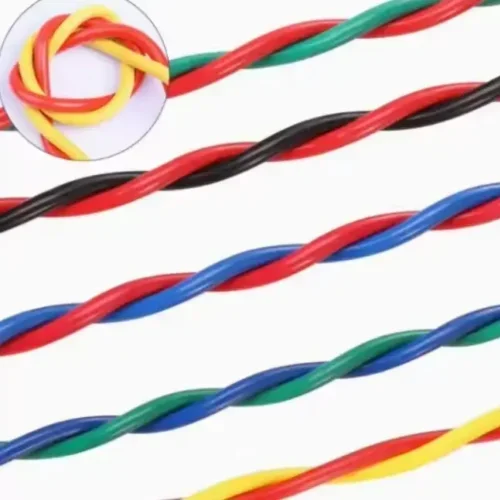

• Core Configuration: 2 cores (twin), twisted together
• Color Coding: Red + Black, Red + Blue, or Red + Yellow (custom options available)
• Standard Compliance: IEC 60227, GB/T 5023.5 (equivalent to international flexible cable standards)
• Operating Temperature: -40°C to +70°C
• Construction: No outer sheath – intended for use inside conduits, trunking, or enclosed wiring systems

Typical Applications

• Internal wiring of lighting circuits and socket outlets in homes and offices
• Power supply leads for air conditioners, water heaters, and kitchen appliances
• Control wiring in distribution boards and motor starter panels
• Temporary site power installations (when protected by conduit)
• Rural electrification projects and off-grid solar system connections

Why Choose This Cable?

• ✅ High Flexibility: Multi-strand copper design allows easy bending and routing through tight spaces.
• ✅ Clear Identification: Dual-color insulation helps prevent wiring errors during installation and maintenance.
• ✅ Cost-Efficient: No outer sheath reduces material cost while maintaining performance—ideal for budget-conscious projects.
• ✅ Durable & Safe: PVC insulation offers excellent resistance to abrasion, moisture, oil, and flame propagation.
• ✅ Africa-Ready: Designed for hot, humid climates and compatible with common African wiring practices (always install in conduit).

Installation Notes

This cable is not suitable for direct burial, outdoor exposure, or wet locations. It must be installed inside approved electrical conduits (PVC or metal) or enclosed cable management systems to ensure mechanical protection and compliance with local electrical codes (e.g., SANS 10142 in South Africa, NEMSA regulations).

Maximum continuous current rating: approximately 32A at 30°C ambient temperature (derating required based on grouping, ambient heat, and installation method).

Packaging & Availability

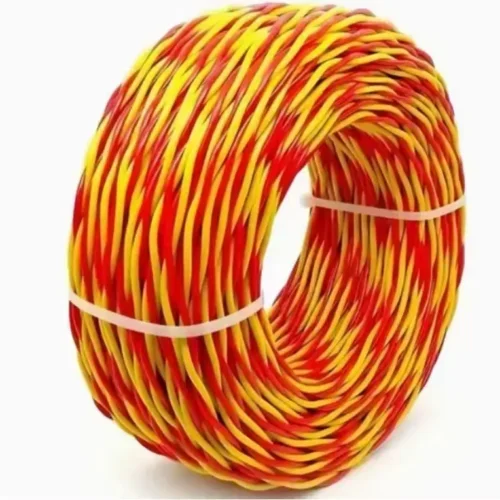

Supplied in standard reels of 100 meters. Custom lengths (e.g., 50m, 200m) available upon request. Bulk pricing for distributors and project contractors.

Technical Support

Need help selecting the right cable size for your project? Contact our technical team for load calculation, voltage drop analysis, and compliance guidance tailored to your country’s regulations.
