5 Core RVV Control Cable 0.75mm² | PVC Insulated | 300V Flexible Multi-Conductor Cable for Industrial & Security Systems
Industrial-grade 5-core RVV flexible control cable with 0.75mm² copper conductors and PVC insulation, designed for security systems, automation, and control circuits. Rated 300V, highly flexible, flame-retardant (IEC 60332-1), and optimized for African industrial and security installations.
📌 Product Overview
This 5 Core RVV Control Cable (0.75mm², PVC Insulated, 300V) is designed for industrial control circuits and security system wiring across Africa. The cable features a flexible multi-stranded copper structure, durable PVC insulation, and stable signal performance—ideal for CCTV, fire alarm systems, access control, and automation equipment.
🌍 Designed for African Industrial & Security Environments
Heat Performance: Operates reliably from -5°C to +70°C under standard PVC rating
UV Resistance: Enhanced PVC compound resists strong African sunlight
Durability: Withstands harsh installation environments including factories, ports, and mining sites
⚙️ Superior Flexibility & Easy Installation
Multi-stranded Copper: 7×0.37mm per core for maximum flexibility
Easy Routing: Minimum bend radius = 6× cable diameter

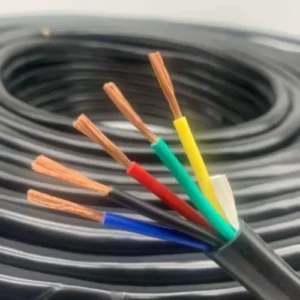

Color-coded cores: Red / Brown / Green / Yellow / Blue for quick, error-free installation
💰 Cost-Effective for Large Projects
Extended Service Life: Up to 30% longer lifespan vs. standard PVC control cables
Lower Maintenance: Reduced failure rate in remote or high-temperature areas
Bulk Supply Available: Suitable for contractors and system integrators
🛡️ Compliance & Safety
Rated Voltage: 300V AC
Flame Retardancy: Meets IEC 60332-1
Construction Standard: IEC 60227 Series
Certifications: CE / RoHS / UL options / SABS (South Africa) / SONCAP (Nigeria) / EAC Mark
📐 Technical Specifications
| Parameter | Details |
|---|---|
| Conductor | 7-strand soft copper, 0.75mm² (7×0.37mm) |
| Number of Cores | 5 cores |
| Insulation | PVC (Polyvinyl Chloride) |
| Voltage Rating | 300V AC |
| Temperature Range | -5°C to +70°C (continuous) |
| Conductor Resistance | ≤ 24.5 Ω/km at 20°C |
| Insulation Resistance | ≥ 100 MΩ·km at 20°C |
| Bend Radius | 6× cable diameter |
| Cable Diameter | Approx. 5.5mm |
| Standard Length | 100m/roll |
| Packaging | 5 rolls per pallet |
🔧 Key Applications
🔐 Security Systems
CCTV power and signal wiring
Fire alarm signal cables
Access control (card readers, electric locks)
Intrusion and motion detector circuits
🏭 Industrial Automation
PLC control wiring
Sensors and actuator circuits
Machine interlock and control loops
🏗 Infrastructure Projects
Mining site security systems
Port and airport monitoring networks
Utility and telecom security installations
📊 Product Advantages (Compared to Standard Cables)
| Feature | This RVV Cable | Standard Cable |
|---|---|---|
| Flexibility | High (multi-strand) | Low (solid core) |
| UV Resistance | Enhanced | Standard |
| Temperature Range | -5°C ~ +70°C | Narrow range |
| Lifespan | 10+ years | 5–6 years |
| Installation | Easy in confined spaces | Difficult |
| Color Coding | IEC standard | Not always coded |
| Total Cost | Lower (long life) | Higher maintenance |
📍 Field-Proven in Africa – Customer Cases
🇿🇦 South African Mine Security Upgrade
40% faster installation
Zero cable failures in 2 years
35% lower maintenance cost
🇳🇬 Nigerian Port CCTV System
Withstood humidity and salt spray
100% stable signal quality
50% reduction in cable replacement costs
📦 Packaging & Shipping
Unit: 100m/roll
Pallet: 5 rolls per pallet
Storage: Keep dry, avoid direct sunlight
Transport: Protect from extreme heat during shipping
✔ Statement
This cable meets international control cable standards and is recommended for security and industrial applications across all African regions.
| Armouring Type | Non-Armoured |
|---|---|
| Conductor Material | |
| Conductor Structure | Flexible Conductor |
| Core Count | Multi-Core |
| Fire Performance | Fire Resistant |
| Installation Type | Ceiling/Tray Installation Cable, Indoor Installation Cable, Outdoor Installation Cable |
| Insulation Material | PVC |
| Package Type | Coil / Roll, Wooden Pallet |
| Sheath Material | PVC – Polyvinyl Chloride |
| Temperature Rating | 70℃, 90℃ |
| Voltage Rating | Control / Signal （ ≤300/500V） |
